In the world of fast-moving home automation and accessibility, and with the continuing rise in urban density, residential elevators are no longer reserved for large mansions (although there are plenty of those with elevators). More than ever, homeowners are choosing to install home elevators in their homes, whether a 3- or 4-storey family home or an aging-in-place solution. Essentially, homeowners are installing home elevators to future-proof their homes. However, with so many choices available (and many home elevators looking exceptionally similar), it is important to know elevator lift dimensions—and all its specifications – before selecting the right lift for your home.
In your 2025 guide, we break down all of the residential elevator dimensions and everything else you need to know about elevators—like sizes, space, specifications, codes, safety standards, and more. Whether you are building new or updating or retrofitting an existing home, this guide covers all aspects of your elevator investment and will assist you in decision-making.
Why Residential Elevator Dimensions Matter
Choosing the right residential elevator involves more than just picking a stylish cabin. The dimensions directly impact:
- Installation feasibility
- User comfort
- Cabin capacity
- Compliance with building codes
- Aesthetics and resale value
Understanding how lift elevator dimensions align with your home’s layout helps ensure a seamless and safe integration.
Typical Residential Elevator Dimensions
While dimensions may vary based on the brand, model, and customization, here are the general size categories most commonly seen in U.S. homes:
1. Standard Residential Elevator Dimensions
| Component | Measurement Range |
| Cabin Width | 36″ to 48″ (91.4 cm to 121.9 cm) |
| Cabin Depth | 36″ to 60″ (91.4 cm to 152.4 cm) |
| Cabin Height | 84″ to 96″ (213.3 cm to 243.8 cm) |
| Shaft (Hoistway) Width | 52″ to 60″ (132 cm to 152 cm) |
| Shaft Depth | 52″ to 66″ (132 cm to 167.6 cm) |
These dimensions are ideal for accommodating one or two passengers, sometimes even a wheelchair user, depending on the model.
2. Compact Residential Elevator Dimensions
If your home has space constraints, compact lifts are the go-to solution. Nibav, for example, specializes in air-driven vacuum elevators that require minimal structural modification.
- Cabin Diameter: As little as 30 inches (about 76 cm)
- Footprint: ~1010 mm (3.3 ft)
- Headroom Requirement: As low as 2440 mm (8 ft)
- Pit Depth Required: Often 0 inches for pitless models
These elevators are perfect for retrofits and tight indoor layouts where traditional shaft installations are not feasible.
Key Technical Specifications to Consider
Beyond size, knowing the technical capabilities ensures that the elevator performs safely, efficiently, and reliably.
1. Load Capacity
Most residential elevators carry between 350 and 950 lbs. Nibav Lifts’ Series III Max, for instance, supports up to 240 kg (529 lbs)—suitable for two people or a person in a wheelchair with an attendant.
2. Speed
Residential elevators typically operate at speeds of 0.15 to 0.4 m/s (30 to 80 ft/min), offering a balance between efficiency and safety.
3. Travel Height
- Standard Travel: Up to 3 or 4 stops (35-50 feet)
- Extended Travel: Some models support up to 5 stops or 50+ feet
4. Drive System
Popular types include:
- Vacuum (air-driven): Eco-friendly, no oil, minimal maintenance
- Hydraulic: Smooth ride, but requires a machine room
- Traction/MRL (Machine-Room-Less): Energy-efficient and compact

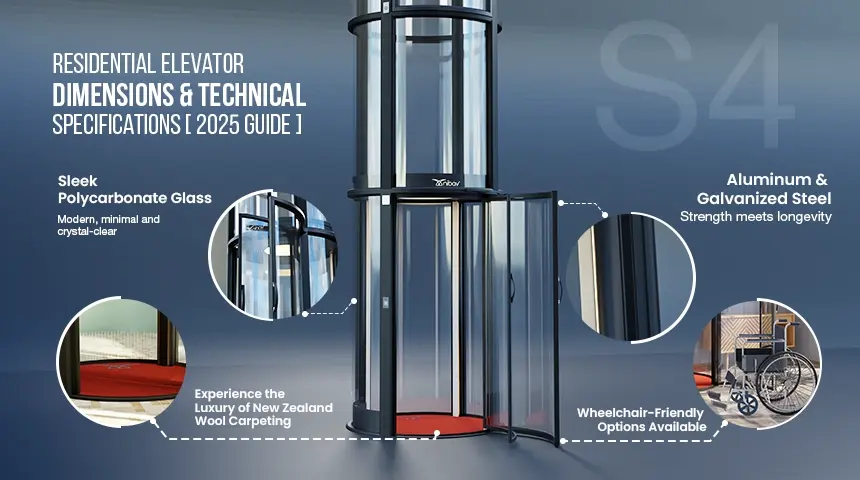

- Gearless Systems: Like Nibav’s S4, offering superior ride quality and longevity
Space Requirements for Residential Elevator Installation
Planning ahead is crucial for efficient installation. Here’s what typically needs to be accounted for:
1. Pit and Overhead Clearance
- Pit: Traditional elevators need a pit of 8″ to 12″. However, Nibav’s elevators are pitless, making them ideal for existing homes.
- Overhead Clearance: Ranges between 8 ft and 10 ft, depending on the model and floor height.
2. Shaft Space
A conventional elevator needs a vertical shaft, while vacuum elevators like Nibav’s are self-supporting and can be installed without a shaft, machine room, or pit.
3. Power Supply
Residential elevators generally require single-phase or three-phase power. Nibav’s models run on a single-phase 230V power supply, like most household appliances.
Customization Options for Lift Elevator Dimensions
Modern residential elevators are as much about design as they are about functionality. Some customization options include:
- Glass walls for a panoramic view
- Color options to match home interiors
- Cabin size variations to suit unique layouts
- Voice-activated or buttonless controls
- Foldable seats and emergency features
Nibav Lifts offers highly customizable elevator models that fit both large villas and compact duplexes. Learn more about Nibav’s residential elevators
ADA Considerations
If you’re planning to accommodate someone with mobility challenges, ADA (Americans with Disabilities Act) guidelines suggest:
- Cabin size: Minimum 36″ x 48″
- Door width: At least 36 inches
- Hall call and control buttons: Placed at accessible heights
While not all home elevators need to meet ADA standards, these guidelines can enhance usability for seniors and individuals with disabilities.
How to Choose the Right Residential Elevator
Here’s a quick checklist:
- What’s the available space in your home?
- Do you need wheelchair accessibility?
- What’s your budget for installation and maintenance?
- Do you prefer a pitless or shaft-based system?
- Are design and aesthetics a priority?
- Are you planning to future-proof your home for aging in place?
For many U.S. homeowners, Nibav Lifts USA offers a perfect balance of compact design, advanced technology, and hassle-free installation. Visit Nibav Home Elevator USA to explore models, get a quote, or book a free consultation.
Future Trends in Residential Elevator Dimensions (2025 and Beyond)
As urban spaces shrink and home automation expands, expect these trends:
- Smaller footprints with higher performance
- Voice and app-based controls
- Eco-friendly drive systems like air-driven lifts
- Minimal civil work requirements
- Improved safety features (seismic sensors, emergency landing systems)
Nibav is at the forefront of these innovations, offering lifts designed not just for today but for the next generation of homeowners.
Conclusion
The first step to making your house more accessible, stylish, and future-ready is knowing the specifications and dimensions of the elevator. No matter if you’re in love with the sleek feel of glass models, are intrigued by compact vacuum models, or any other kind of lift, there is something for every type of home.
When you’re choosing an elevator and the right elevator dimensions, load capacity, or even specifications, you are actually investing in comfort and value for years to come. To see the latest in lift elevator dimensions and options, check out the latest collection from Nibav Lifts USA – also prepared to enhance your home style and maintenance-free living!
Get in touch with our home elevator experts now and experience your home with a whole new level of luxury and comfort.
